Cantilever Rack in Sanger, CA

Sanger Manufacturing Floors and Cantilever Racking

Material Flow on Academy Avenue

Fabrication shops on Academy Avenue and packers near the Sanger Depot area move long stock from SR-180 receiving to cutting and line maintenance.

Light duty

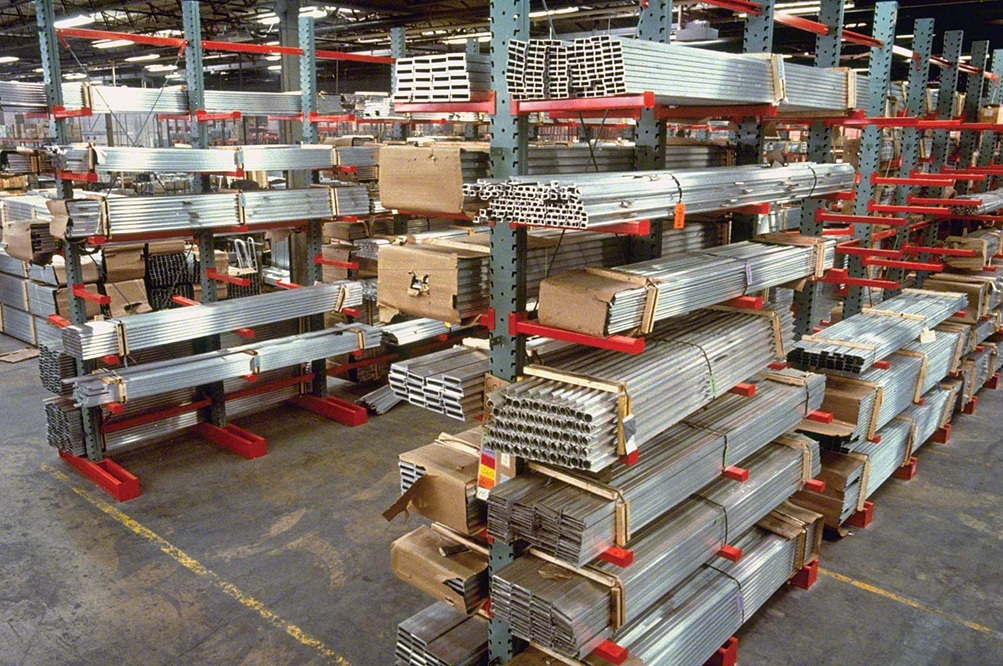

Trim, aluminum extrusion and thin-wall tube.

Medium duty

Channel, angle and mid-weight pipe.

Heavy duty

Solid bar, heavy wall pipe and plate bundles.

Mixed runs

Heavier arms low, lighter arms high on the same columns.

Send the profiles you stock with lengths and bundle weights. We group them into length bands and assign levels.

We check forklift capacity at height with long loads, since the truck rating also limits how high arms should go.

Arm spacing matters more than people think. Thin-wall tube and aluminum extrusion bend between supports that are too far apart, while heavy bar spans wider gaps easily. We set spacing per profile so nothing bows.

Single or double sided is the next choice. Double-sided cantilever racking doubles storage per column but needs aisles on both faces; single sided fits against walls and saves aisle space in narrow buildings.

Heat in non-air-conditioned Sanger shops shapes installation planning. Crews schedule work for cooler parts of the day and keep the production floor clear, so the shop can keep running while the cantilever storage rack goes in.

Selective pallet rack still makes sense for boxed hardware and consumables near the same work area.

One more check for Sanger fabricators: forklift reach. Long material carried high sways, and operators slow down. Keeping the cantilever rack to a sensible number of levels usually makes the shop faster overall. A cantilever storage rack also benefits from clear capacity labels on each level, so operators know the arm limit before they set a heavy bundle down. We include those labels with every run. Combined with straight aisles and sorted length bands, they make the steel area one of the easiest parts of the shop to manage, even for new operators.

Every quote lists columns, arms, braces, floor anchoring and installation by experienced installation crews we schedule and manage. Compare the Sanger service area, the cantilever rack product page, Sanger pallet flow rack and Sanger drive-in rack.
